9 Inch AHD heavy duty truck reversing camera system

FOB Reference Price:Get Latest Price
US $65-75 / Sets | 6 Set/Sets 9 Inch AHD heavy duty truck reversing camera system (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Reversing Camera Kits
Voltage:
DC 24V
Car Make:
Bus truck trailer lorry RV and universal vehicles
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FAVO/OEM
Model Number:
RVM-9013AHD
Warranty:
1 Years
Screen:
9 Inch AHD heavy duty truck reversing camera system
Aspect Ratio:
16:9
Pixel:
1024xRGBx600
triggers:
1 way
Monitor AV input:
2 ways
System:
PAL & NTSC auto switching
Camera Sensor:
420 TVL Color CMOS Sensor
Camera Degree:
120 degree
BackLight Luminance:
LED, 350cd/㎡
Power:
12-24V DC
Supply Ability
Supply Ability:
10000 Set/Sets per Month 9 Inch AHD heavy duty truck reversing camera system
Packaging & Delivery
Packaging Details
gift box; or according to customer demand
Port
Hongkong
Lead Time :
7-10 days after receiving payment copy

DC12-24V 9 Inch AHD heavy duty truck reversing camera system



9 Inch AHD heavy duty truck reversing camera system RVM-9013AHD Specification:



Monitor Specifcations:

Monitor

9 INCH

Screen Ratio

16 : 9

BackLight Luminance

LED, 350cd/m2

Resolution

1024xRGBx600

Compatible system

NTSC & PAL (automatically)

OSD control

Brightness, Contrast, Saturation, Volume, Language

(English, Simplify Chinese)

View angle

Hor. L(70) R(70)   Ver. UP(50) DOWN(70)

Image reversion

UP/Down and Left/Right

Power requirement

DC 12-24V

Power consumption

5W

Storage temperature

-30 to 80

Working temperature

-20 to 70

AV Inputs

2channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30

Number of Trigger and display

1 triggers

Optional functions

4 PIN connector or RCA connector

Other features

OSD menu, Remoter control, Sunshade design around

Accessories

Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench

Package

6pcs/box  net weight: 10.8KGS  gross weight:11.6KGS  M: 54.7*36*21.6cm

Camera Specification:

Image sensor

 1/3" OV 1.3MP CMOS Sensor

Effective  Pixel

NTSC/PAL 1280(H)*960(V) 130W

Illuminance

0.1Lux,Infrared night vision

CDS night version change

Change to black and white image automatically in the night

Hori zontal Resolution

1.3Megapixel/960P


Mirror or Non-mirror optional

S/N Ratio

39db(TYP)69db(MAX)(AGC OFF)

Electronic Shutter

Auto 1/25(30)-1/50,000

Exposure

Auto*2-*512

System

PAL/NTSC optional

Video Output

CVBS 1.0 vp-p/75 ohms

Waterproof Level

IP68

Shockproof Level

4G

Power Requirements

DC 12V or 24V optional

Power Consumption

<3W

Maximum current

<250mA

Connector

4PIN or RCA optional

Working Temperature

-10℃ to 60℃

Storage Temperature

-20℃ to 70℃

Appearance and Application

Aluminum alloy material shell, outside hanging design; Suitable for bus, trucks and special vehicles

9 Inch AHD heavy duty truck reversing camera system RVM-9013AHD Package Details:

Model No.

Pieces/Carton

Net Weight(kgs)

Gross Weight(kgs)

Carton size(cm)

RVM-9013AHD

6

12.6

13.4

54*43*27

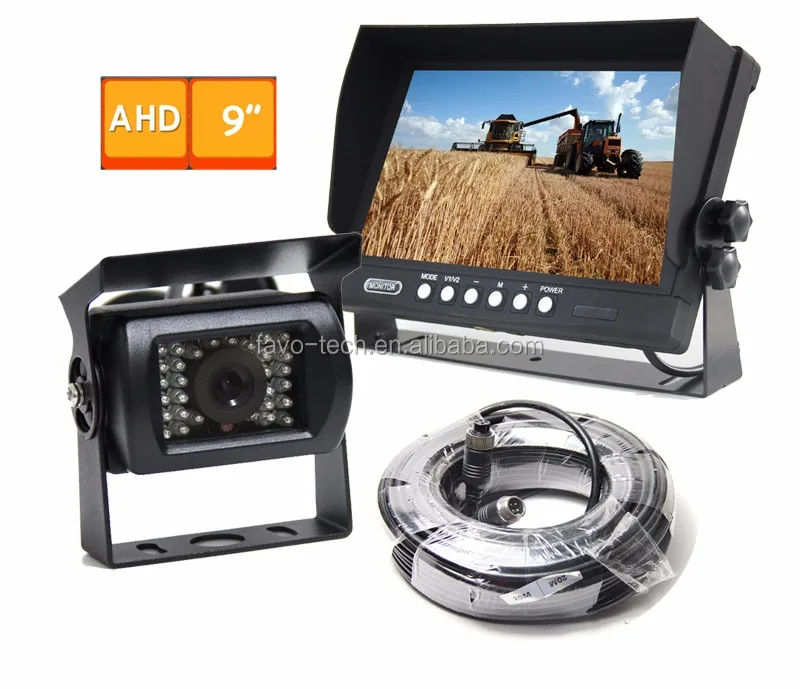

9 Inch AHD heavy duty truck reversing camera system RVM-9013AHD Product Photos:

RVM-9013AHD
